ULTIMATE HUNTING PERFORMANCE IN A SMALL DIAMETER SHAFT̴

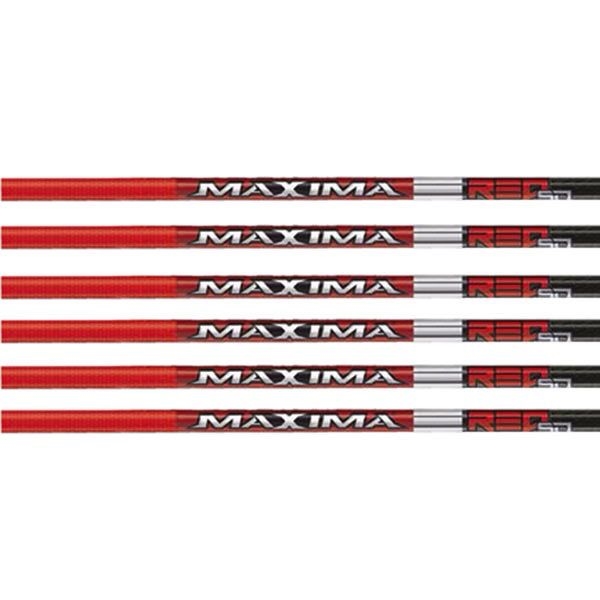

The Maxima RED
® SD is a breakthrough in controlling Dynamic Spine in a smaller diameter (.203"ID) shaft. The new, high-tech carbon arrow shaft design has stiffer ends to contain the arrow's flex to what we call the RED ZONE
®. The RED ZONE is the section of the arrow shaft engineered to contain Dynamic Spine and make a broadhead shoot more consistently. The smaller diameter Maxima RED
® SD delivers improved penetration and reduces wind-drift which enables more accurate shots at longer distances.
Dynamic Spine Control - Patented high-tech carbon material construction that manages dynamic spine in a new way to make broadheads fly better.
Maxima RED SD uses different carbon materials to control arrow flex to the RED ZONE.
SD - The Maxima RED® SD shaft features a .203" Inside Diameter for better penetration and less wind-drift.
RED ZONE - The section of the Maxima RED® SD arrow shaft that manages arrow flex in flight, which is called dynamic spine. The RED ZONE® is the best section of the arrow shaft to contain Dynamic Spine and make broadheads shoot best.
Redefining Broadhead Accuracy - broadhead moves the center of mass forward on an arrow, which increases the flex of the arrow when launched from the bow. Both expandable and fixed blade broadheads exaggerate the effect of this increased flexing because the shape of the broadhead acts like "wings" on the front of the arrow. The stiffer front end of the arrow shaft repositions arrow flex to the RED ZONE® and reduces oscillation on the front end to make broadheads shoot more consistently.
This results in tighter groups with broadheads and makes the Maxima RED® Series
the Ultimate Hunting Arrows.
Best Tuning Arrow Ever - The Maxima RED® SD manages dynamic spine
so well it only takes two spine sizes to cover 40-92 pound bows.
Matched Set - All Maxima RED® SD 12-pack sets
are sorted and matched by weight and spine for
best-in-class consistency. Spine selection
sorting tolerance is +/- 0.0025".
Weight sorting tolerance
is +/- 1.0 grains.
Real Straightness - Every Maxima RED
® SD arrow is laser checked
for straightness to a remarkable 1/10,000 of an inch. Maxima RED SD
straightness of +/- 0.0025" is a maximum measurement, not an average.
LAUNCHPAD̴® Precision Nock - LAUNCHPAD™ Precision Nocks
come standard on all Maxima RED® SD arrows and shafts to deliver
a controlled arrow release, better shaft alignment and more
consistent accuracy shot after shot.
Nock Collar - Carbon Express
̴®proprietary BullDog
™ Nock Collar
comes standard on all Maxima RED SD arrows and shafts to protect
the shaft against nock end impacts.
Sizes: 350 (9.4gpi & .350 spine)
Diameter: .264" (250), .272" (350)
Available In: 12 pack shafts
Length: 31.5"
Straightness factor: ±.0025"
Weight tolerance: ±1.0 grain
